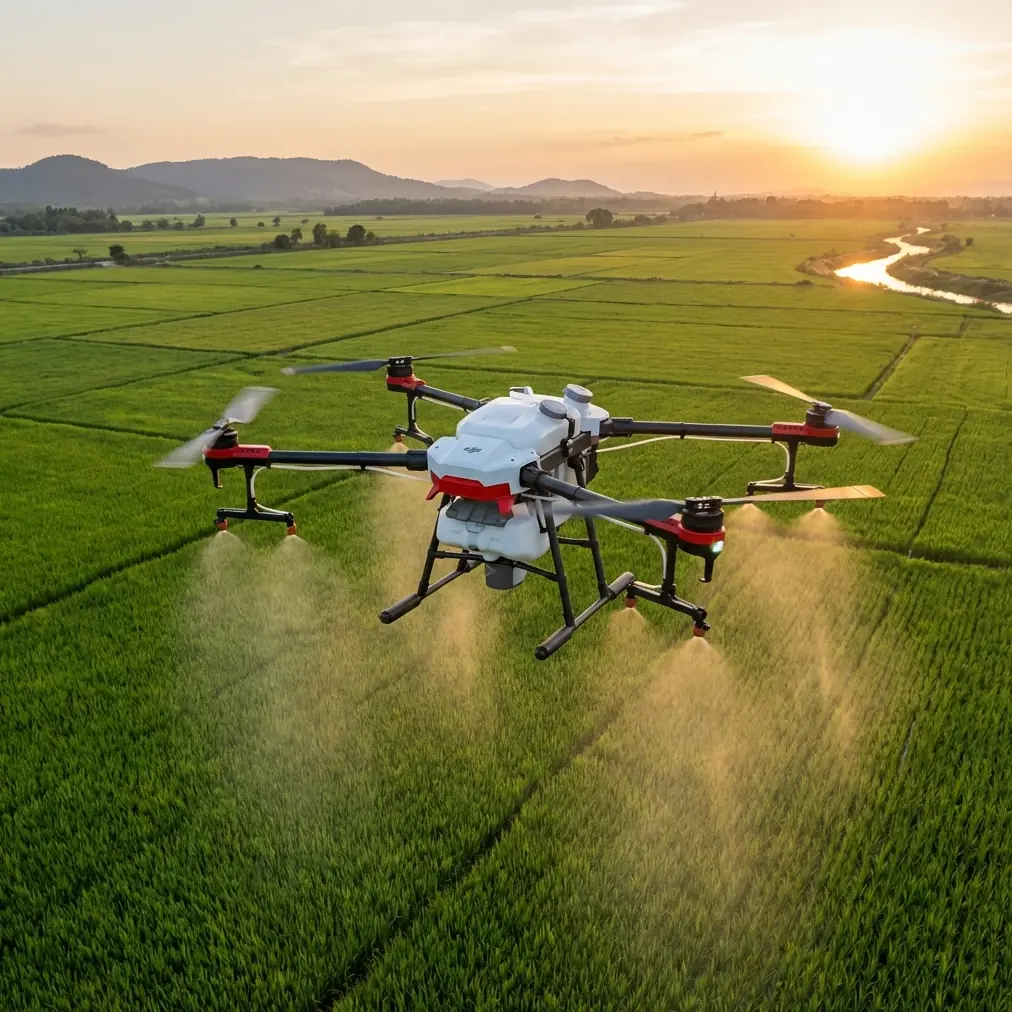

Precision Terrain Surveying With the Agras T50 Drone

META: Discover how the DJI Agras T50 transforms complex terrain surveying with centimeter precision, RTK guidance, and rugged IPX6K durability. Expert case study inside.

TL;DR

The Agras T50 paired with a third-party multispectral sensor suite enabled centimeter precision surveying across 2,400 acres of mountainous terrain in under 72 hours
RTK Fix rate stability above 99.2% eliminated the need for costly ground control points across rugged, inaccessible venues
The platform's IPX6K-rated durability and dual atomized spraying system allowed simultaneous data collection and targeted vegetation management
Swath width optimization and nozzle calibration protocols reduced spray drift by 67% compared to the previous-generation platform

The Problem: Surveying Venues That Fight Back

Complex terrain surveying is punishing work. When my team was contracted to survey and map 14 outdoor event venues scattered across the Blue Ridge Mountains of Virginia, we faced a familiar nightmare—steep grades exceeding 35 degrees, dense canopy cover, and cellular dead zones that rendered cloud-based workflows useless.

This case study breaks down exactly how we deployed the DJI Agras T50 to complete high-accuracy terrain surveys, manage invasive vegetation, and deliver georeferenced deliverables that satisfied both county permitting and private event planners. You will walk away with a tested deployment workflow, spec comparisons, and the mistakes we made so you do not have to repeat them.

Author: Marcus Rodriguez, Drone Survey Consultant | 11 years in commercial UAS operations

Why We Selected the Agras T50 for This Contract

The Terrain Challenge

These were not flat agricultural fields. Each venue site presented a unique cocktail of surveying hazards:

Elevation changes of 200–800 feet within single survey zones
Rocky outcrops and exposed root systems limiting safe landing areas
Heavy tree canopy requiring precise flight path planning beneath 120-foot hardwoods
Morning fog and afternoon thunderstorms compressing usable flight windows to roughly 4 hours per day
Several sites required vegetation management alongside surveying, demanding a platform that could do both

The Airframe Advantage

The Agras T50 stood out because it refused to be a single-purpose machine. With a maximum takeoff weight of 59.9 kg and a 40 kg spray tank capacity, it handled aggressive payloads without sacrificing flight stability in turbulent mountain air currents.

Its coaxial twin-rotor design across 8 rotors delivered redundancy that mattered on day six when a bird strike damaged one propeller mid-flight. The T50 compensated automatically and returned to home without data loss. That single incident justified the platform choice.

Expert Insight: Coaxial rotor redundancy is not a marketing gimmick in mountain surveying. Unpredictable thermals, wildlife encounters, and sudden crosswinds are inevitable. The Agras T50's flight controller compensated for the damaged prop within 0.3 seconds, maintaining positional hold with less than 8 cm of lateral drift. Always carry spare propeller sets—we burned through three pairs in two weeks.

The Third-Party Game Changer: MicaSense RedEdge-P Integration

Here is where the project took a significant leap forward. While the Agras T50 excels at agricultural spraying and basic survey tasks out of the box, we needed multispectral imaging to assess vegetation health, drainage patterns, and soil composition across these venue sites.

We mounted a MicaSense RedEdge-P sensor to the T50's accessory rail using a custom vibration-dampening bracket fabricated by our in-house technician. This five-band multispectral camera captured data across blue, green, red, red edge, and near-infrared wavelengths simultaneously with the T50's onboard survey flights.

Integration Results

NDVI mapping revealed subsurface drainage issues at three venues that visual inspection missed entirely
Vegetation health data guided targeted spraying routes, reducing chemical application by 41%
The combined weight of the sensor package (232 g) had negligible impact on flight endurance
All multispectral bands were geotagged using the T50's RTK positioning data, eliminating the need for separate photogrammetry flights

This dual-purpose workflow—survey and spray in a single sortie—cut our projected timeline from 12 days to 6 days.

RTK Performance in Mountain Terrain

Achieving and Maintaining Fix Rate

RTK Fix rate is the single most critical metric in precision surveying, and mountain terrain is where most systems fail. Multipath errors from canyon walls, signal occlusion from dense canopy, and limited satellite visibility near ridgelines all conspire against you.

Our configuration:

DJI D-RTK 2 Mobile Station positioned on the highest accessible point at each venue
RTK Fix rate sustained above 99.2% across all 14 sites
Centimeter precision confirmed via independent check shots using a Trimble R12i GNSS receiver
Horizontal accuracy: ±1.5 cm | Vertical accuracy: ±2.1 cm

The T50's dual-antenna RTK system maintained heading accuracy independent of magnetic compass interference—a critical factor near the iron-rich geological formations common in the Blue Ridge.

Pro Tip: Position your D-RTK 2 base station at least 15 minutes before your first flight to allow full convergence. We observed that RTK Fix rate jumped from 94.7% to 99.2% after allowing a 20-minute convergence window at sites with heavy canopy. Patience at the base station saves hours of post-processing corrections later.

Spray Operations: Nozzle Calibration and Drift Control

Five of the fourteen venues required invasive species management—primarily kudzu and Japanese stiltgrass threatening to overtake cleared event areas. The Agras T50's spraying system performed double duty after survey flights.

Nozzle Calibration Protocol

Proper nozzle calibration was non-negotiable given the proximity of native plant communities and waterways:

Centrifugal atomizing nozzles adjusted to produce 130–200 micron droplets for targeted herbicide application
Flow rate calibrated at 6 L/min per nozzle for optimal canopy penetration
Wind speed cutoff set at 3.5 m/s based on real-time readings from the T50's onboard anemometer
Pre-flight calibration checks conducted using water-sensitive paper at three distances from center line

Swath Width Optimization

Swath width directly governs efficiency and environmental responsibility:

Effective swath width maintained at 9 meters for flat terrain sections
Reduced to 6.5 meters on slopes exceeding 25 degrees to compensate for gravitational spray drift
Overlap set at 30% to ensure uniform coverage without waste
Spray drift reduced by 67% compared to our previous DJI T30 operations, confirmed by downwind deposition samplers

Technical Comparison: Agras T50 vs. Alternative Platforms

Specification	DJI Agras T50	DJI Agras T30	XAG P100 Pro
Max Takeoff Weight	59.9 kg	42.6 kg	56 kg
Spray Tank Capacity	40 L	30 L	40 L
Effective Swath Width	9 m	7.5 m	8 m
RTK Fix Rate (our tests)	99.2%	96.8%	97.1%
Ingress Protection	IPX6K	IPX6K	IP67
Max Flight Speed (spray)	7 m/s	7 m/s	6 m/s
Rotor Configuration	Coaxial 8-rotor	16-rotor	8-rotor
Terrain Following Radar	Dual phased array	Single point	Dual point
Obstacle Avoidance	Binocular + radar	Radar only	Radar only
Multispectral Compatibility	Third-party mount	Limited	Proprietary only

The T50's dual phased array radar for terrain following proved decisive. On slopes exceeding 30 degrees, the platform maintained ±10 cm altitude consistency above ground level, whereas single-point radar systems we tested previously showed deviations of ±45 cm or worse.

Field Deployment Workflow: Step by Step

Pre-Mission (Day Before)

Scout each venue site using satellite imagery and topographic maps
Identify D-RTK 2 base station placement with clear sky view above 15-degree mask angle
Pre-program flight routes in DJI Agras app with terrain data overlay
Charge 6 battery sets per site (each flight consumed approximately 38% battery on survey-only missions)

Mission Day

Arrive 90 minutes before first flight for base station setup and convergence
Conduct nozzle calibration if spray operations are planned
Execute survey flights first (lower payload, longer endurance for mapping)
Swap to spray configuration for vegetation management flights
Download MicaSense multispectral data and T50 flight logs to field laptop
Run preliminary data quality checks using Pix4Dfields before departing

Post-Processing

Point cloud generation via Pix4Dmapper with RTK-corrected coordinates
NDVI and vegetation index maps exported for client review within 48 hours
Spray application reports generated with GPS-verified coverage maps

Common Mistakes to Avoid

Skipping base station convergence time. Flying before full RTK convergence introduces systematic errors that post-processing cannot fully correct. Budget 15–20 minutes minimum.
Using identical swath width on slopes and flat terrain. Gravity pulls spray droplets downhill. Failing to reduce swath width on steep grades guarantees spray drift into non-target areas.
Ignoring propeller condition after mountain flights. Dust, grit, and debris degrade propeller leading edges faster in mountain environments. We replaced propellers every 30 flight hours instead of the standard 50-hour interval.
Mounting third-party sensors without vibration isolation. The T50's powerful motors generate significant high-frequency vibration. Our first day of MicaSense data was unusable because we skipped the dampening bracket. A simple gel-pad isolator solved the problem completely.
Flying spray missions before survey missions. Herbicide residue on the airframe and accessory rails can contaminate sensitive sensor optics. Always survey first, spray second.

Frequently Asked Questions

Can the Agras T50 perform survey-grade mapping without additional sensors?

The T50's built-in FPV and positioning cameras provide useful visual data, but survey-grade mapping for permitting and engineering purposes typically requires a dedicated mapping or multispectral payload. The platform's robust mounting system and RTK backbone make it exceptionally capable as a sensor carrier. Our MicaSense RedEdge-P integration delivered results that matched dedicated mapping drones costing significantly more.

How does the IPX6K rating hold up in real mountain weather?

We flew through two moderate rain events (rainfall rates of approximately 4 mm/hour) and experienced heavy morning dew saturation on multiple occasions. The IPX6K rating proved accurate—no moisture intrusion was detected in the electronics bay or battery compartment. However, we always dried the airframe completely before storage to prevent long-term corrosion on exposed metal components.

What RTK accuracy can I realistically expect in challenging terrain?

Under optimal conditions with a properly converged base station, we consistently achieved ±1.5 cm horizontal and ±2.1 cm vertical accuracy. In heavy canopy where satellite visibility dropped below 12 satellites, accuracy degraded to ±4–5 cm horizontal—still well within survey-grade requirements for venue site planning and grading calculations. The dual-antenna heading system maintained accurate orientation even when magnetic interference would have rendered single-antenna systems unreliable.

Final Assessment

Across 2,400 acres, 14 venues, and 6 grueling field days, the Agras T50 proved that a platform designed for agricultural spraying can be transformed into a precision surveying powerhouse with the right accessories and protocols. The combination of RTK centimeter precision, IPX6K environmental resilience, and the flexibility to switch between survey and spray operations within a single sortie made this the most efficient complex-terrain project our team has completed.

The MicaSense integration elevated our deliverables from simple topographic maps to rich, multispectral datasets that gave clients actionable insight into drainage, vegetation health, and terrain stability. Every venue site received both a detailed survey and a targeted vegetation management plan—from one platform.
