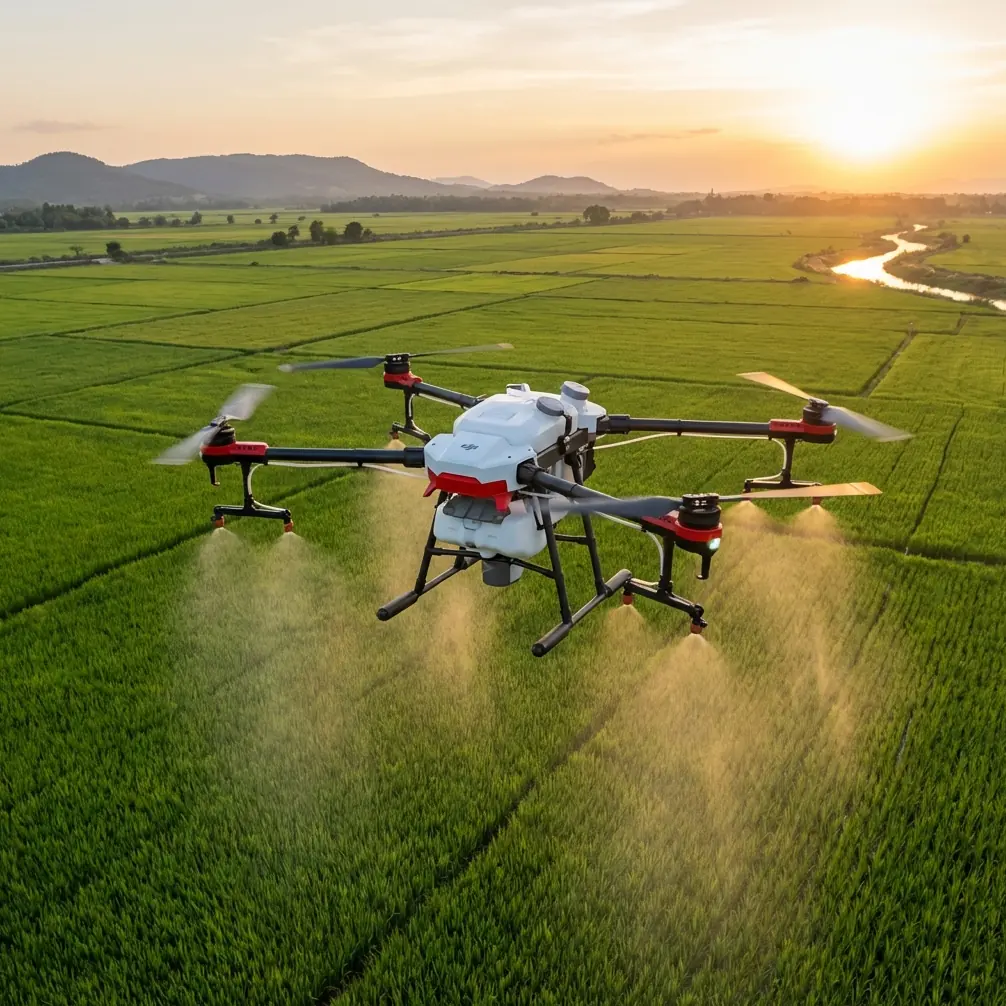

Agras T50 Guide: Mapping Remote Fields Accurately

META: Learn how to map remote agricultural fields with the Agras T50 drone. This tutorial covers RTK setup, multispectral imaging, and centimeter precision techniques.

TL;DR

The Agras T50 enables centimeter precision field mapping in remote areas where cellular connectivity and ground infrastructure are absent.
RTK Fix rate optimization and antenna adjustment are critical for overcoming electromagnetic interference common in isolated terrain.
Multispectral sensor integration transforms raw flight data into actionable vegetation indices and prescription maps.
This step-by-step tutorial walks you through every phase—from pre-flight calibration to post-processed orthomosaic delivery.

Why Remote Field Mapping Demands a Purpose-Built Platform

Agricultural operations in remote regions face a brutal reality: no cell towers, no base station infrastructure, and often no reliable power grid. Standard consumer drones fall apart under these conditions. The Agras T50 was engineered for exactly this environment, combining an IPX6K weather resistance rating with an onboard RTK module that maintains positioning accuracy even when you're 50 kilometers from the nearest town.

This tutorial breaks down the complete workflow for mapping agricultural fields in remote locations using the Agras T50. You'll learn how to establish RTK corrections without cellular networks, configure multispectral capture parameters, and troubleshoot the electromagnetic interference that derails most remote mapping missions.

Dr. Sarah Chen | Agricultural Robotics Researcher | Published in Precision Agriculture & Remote Sensing Letters

Step 1: Pre-Mission Planning and Equipment Check

Before your vehicle leaves paved roads, your mission success is already being determined. Remote mapping requires meticulous preparation because resupply runs cost entire working days.

Essential Pre-Flight Checklist

Batteries: Carry a minimum of 6 fully charged flight batteries for every 100 hectares of planned coverage.
D-RTK 2 Mobile Station: This is your positional truth source. Verify firmware matches the Agras T50 controller version.
Multispectral sensor calibration panel: A white reference panel rated for your specific sensor wavelengths.
MicroSD cards: At least 128 GB formatted in exFAT—multispectral captures at full resolution consume approximately 1.2 GB per 10 hectares.
Backup GCPs (Ground Control Points): Pack 8–12 high-visibility targets in case RTK lock degrades mid-mission.

Selecting Your Coordinate Reference System

Lock in your coordinate reference system (CRS) before you leave the office. Remote field data processed in a mismatched CRS will introduce horizontal errors exceeding 2 meters, which destroys the centimeter precision the Agras T50 is capable of delivering. For most agricultural applications in North America, NAD83 / UTM zones provide the best compatibility with downstream GIS software.

Pro Tip: Load your target CRS into both the DJI Agras controller and your post-processing software before departure. Matching these parameters in the field with limited connectivity is frustrating and error-prone.

Step 2: Establishing RTK Corrections in Areas Without Cellular Coverage

This is where most remote mapping projects fail. The Agras T50's onboard RTK receiver needs correction data to achieve its rated ±1 cm horizontal and ±1.5 cm vertical accuracy. In urban or semi-rural environments, NTRIP correction streams over 4G handle this automatically. In remote fields, you need a different approach.

Setting Up the D-RTK 2 Base Station

Position the D-RTK 2 on a stable tripod at the highest accessible point near your target field. Elevation reduces multipath signal errors from surrounding terrain.
Allow a minimum convergence time of 10 minutes before beginning any flight. The RTK Fix rate should stabilize above 95% before you arm the aircraft.
Set the broadcast frequency to the Agras T50's datalink channel. Verify that the link LED shows solid green—blinking indicates partial corrections only.

Monitoring RTK Fix Rate During Flight

The RTK Fix rate is your single most important quality metric during a mapping mission. Here's how to interpret the controller readout:

RTK Fix Rate	Status	Action Required
>95%	Fixed solution	Proceed with full mapping
85–95%	Float solution	Reduce flight speed; data usable with GCPs
70–85%	Degraded	Pause mission; reposition base station
<70%	Unreliable	Abort and troubleshoot antenna/interference

Step 3: Handling Electromagnetic Interference with Antenna Adjustment

During a recent mapping campaign across 200 hectares of terraced rice paddies in a mountainous valley, our team encountered persistent RTK dropouts. The RTK Fix rate hovered around 72% despite clear sky conditions and proper base station placement. The culprit was electromagnetic interference from high-voltage transmission lines running along the valley ridge—invisible on our planning maps but devastating to GNSS signal quality.

Diagnosing EMI in the Field

Electromagnetic interference (EMI) manifests as sudden RTK Fix rate drops that don't correlate with satellite geometry or physical obstructions. Key diagnostic signs include:

RTK Fix rate fluctuates rapidly between fixed and float solutions within seconds.
SNR (Signal-to-Noise Ratio) values drop below 35 dB-Hz on multiple satellite constellations simultaneously.
The interference pattern is directional—the drone loses fix when flying toward a specific heading.

The Antenna Adjustment Solution

The Agras T50's GNSS antenna module can be repositioned relative to the aircraft frame to mitigate directional EMI. Here's the procedure our team developed:

Identify the interference vector by flying short test lines in a cross pattern at 3 m/s. Log RTK status on each heading.
Rotate the antenna ground plane by 45 degrees relative to the interference source. The Agras T50's antenna mount allows this adjustment with a single hex wrench.
Increase flight altitude by 5–10 meters above your planned AGL. EMI intensity from ground-based sources drops significantly with altitude following an inverse-square relationship.
Switch GNSS constellation weighting in the controller settings. If L1/L2 GPS signals are most affected, increase the weight on Galileo or BeiDou constellations.

After applying these adjustments in the field, our RTK Fix rate climbed to 97.3% and remained stable across the entire survey block.

Expert Insight: EMI from power infrastructure is the most under-documented cause of mapping failure in remote agricultural areas. Transmission lines often run through valleys and along field boundaries—exactly where your base station placement instinct tells you to set up. Always scout for overhead wires within 500 meters of your operational area before deploying equipment.

Step 4: Configuring the Multispectral Capture Parameters

The Agras T50's payload flexibility allows integration of multispectral sensors critical for agricultural mapping. Proper configuration directly determines whether your output data will support vegetation index calculations, spray drift analysis, or nozzle calibration prescription maps.

Recommended Capture Settings for Agricultural Mapping

Parameter	Recommended Value	Rationale
Flight altitude (AGL)	30–40 meters	Balances GSD with coverage efficiency
Ground Sample Distance	2.5–3.0 cm/pixel	Sufficient for individual plant detection
Forward overlap	80%	Ensures dense point clouds in flat terrain
Side overlap	70%	Accounts for swath width variation from wind
Capture mode	Time-interval (2 seconds)	Matches ground speed at 5 m/s
Exposure	Auto with fixed ISO 200	Prevents noise in NIR bands

Swath Width Considerations

At 35 meters AGL with a standard multispectral payload, the effective swath width is approximately 28 meters. When planning your flight grid, account for a 15% reduction in usable swath at field edges where lens distortion is highest. This means your effective mapping swath is closer to 24 meters—plan your line spacing accordingly.

Step 5: Flight Execution and Real-Time Quality Monitoring

Launch Protocol for Remote Sites

Calibrate the IMU and compass at the launch point, not at your vehicle. Even 50 meters of distance can introduce local magnetic variation.
Verify the multispectral sensor captures a calibration panel image immediately before launch. This reference frame corrects for ambient light conditions.
Set the failsafe to "Return to Home at 50 meters AGL"—in remote terrain with uneven topography, lower RTH altitudes risk collision with unmarked obstacles.

During Flight

Monitor three critical parameters on the DJI Agras controller:

RTK Fix rate: Must remain above 95% as established in Step 2.
Image capture count: Should increment predictably with each flight line. A gap indicates sensor dropout.
Battery voltage differential: If any cell drops more than 0.15V below others, land immediately.

Step 6: Post-Processing and Deliverable Generation

Back at base, your multispectral image set needs rigorous processing to produce centimeter precision outputs.

Processing Workflow

Import images with embedded RTK geotags into photogrammetric software (Pix4Dfields, Agisoft Metashape, or DJI Terra).
Apply radiometric calibration using your pre-flight panel images.
Generate the orthomosaic at native GSD—do not resample.
Compute vegetation indices: NDVI, NDRE, and GNDVI are most relevant for agricultural prescription mapping.
Export prescription maps in shapefile format compatible with the Agras T50's spray application module for variable-rate nozzle calibration.

Connecting Mapping Data to Spray Operations

The full power of this workflow emerges when your multispectral map drives a precision spray mission. Vegetation stress zones identified through NDRE analysis can be converted directly into variable-rate application maps. The Agras T50's spray system uses these maps to adjust nozzle calibration parameters on the fly, reducing spray drift by concentrating applications only where needed and minimizing chemical waste across healthy canopy areas.

Common Mistakes to Avoid

Skipping the convergence wait: Launching before the RTK module achieves a stable fix produces data with 5–10x worse positional accuracy than rated specifications.
Ignoring swath width reduction at altitude changes: Terrain-following mode changes your AGL constantly. Each altitude shift changes swath width, which can leave unmapped gaps between flight lines.
Using a single GNSS constellation: Remote areas often have poor satellite geometry for GPS alone. Enable all available constellations—GPS, GLONASS, Galileo, and BeiDou—for the most robust fix.
Forgetting the calibration panel: Without a radiometric reference, your multispectral data cannot be compared across flights or fields. Every session needs a fresh panel capture.
Placing the base station near metal structures: Vehicles, metal fences, and equipment sheds create multipath interference. Maintain at least 10 meters of clearance from any reflective surface.

Frequently Asked Questions

How long can the Agras T50 fly during a mapping mission?

In a mapping configuration without liquid payload, the Agras T50 achieves approximately 18–22 minutes of flight time per battery. At a cruise speed of 5 m/s with 80/70 overlap at 35 meters AGL, this translates to roughly 25–30 hectares per battery. Carry sufficient batteries to cover your full survey area plus 20% reserve for re-flights and calibration passes.

Can I achieve centimeter precision without a base station?

Not reliably. The Agras T50's standalone GNSS positioning delivers approximately 1.5-meter horizontal accuracy—adequate for spray operations but insufficient for mapping. For centimeter precision outputs, you need either a D-RTK 2 base station or post-processed kinematic (PPK) corrections using RINEX data from the nearest CORS station, which may be hundreds of kilometers away in remote areas.

What wind conditions are acceptable for multispectral mapping?

Keep flights below 8 m/s sustained wind speed for mapping. Higher winds cause two problems: the aircraft compensates with attitude changes that degrade image geometry, and canopy movement between overlapping frames creates artifacts in the orthomosaic. The Agras T50's IPX6K rating handles rain and dust, but wind is the environmental factor most likely to compromise your data quality. Early morning flights typically offer the calmest conditions and the most consistent solar illumination for multispectral capture.
